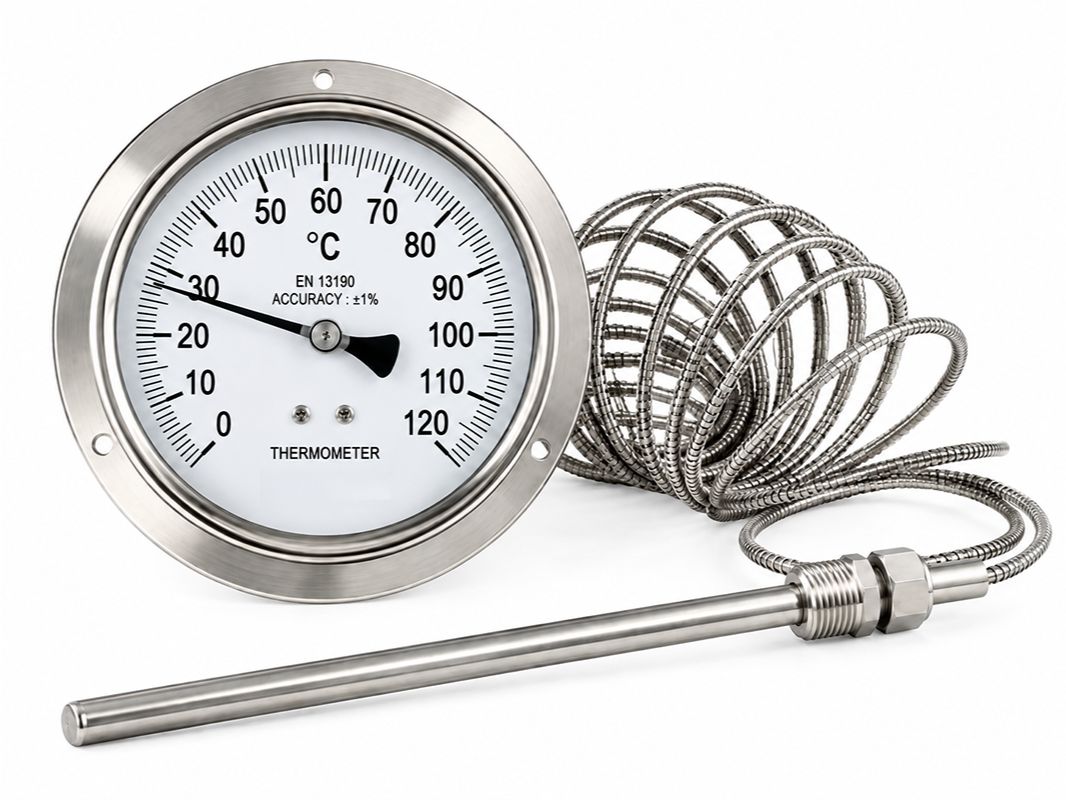

Temperature Gauge – High Precision Industrial Temperature Measurement
A Temperature Gauge is a reliable instrument used to measure and display temperature in industrial processes. At Rutvi Enterprises, we supply high-precision temperature gauges designed for demanding applications in CNG stations, oil & gas, petrochemical, HVAC, and heavy industries.
Our temperature gauges are available in a wide range of dial sizes, temperature ranges, and connection types. Whether you need a bimetal thermometer for local indication or a gas-filled gauge for high-vibration environments, we have the right solution for your requirement.
- High Accuracy & Reliable Performance
- Bimetal / Gas Filled / Liquid Filled Options
- IS 2806 & EN 13190 Compliant
Key Specifications
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Bimetal Thermometer / Gas Filled / Liquid Filled |
| Dial Size | 50 mm, 63 mm, 100 mm, 150 mm |
| Temperature Range | -50°C to +600°C (various ranges available) |
| Accuracy Class | ±1.0%, ±1.5%, ±2.0% (as per IS 2806) |
| Connection Size | 1/4", 3/8", 1/2" |
| Connection Type | BSP / NPT / BSPT |
| Stem Length | 50 mm to 1000 mm (custom available) |
| Stem Material | Stainless Steel 304 / 316 |
| Case Material | Stainless Steel 304 / MS / Brass |
| Window | Acrylic / Polycarbonate / Glass |
| Mounting | Bottom Entry / Back Entry / Panel Mount / Adjustable |
| Operating Temperature | -50°C to +600°C |
| Standard | IS 2806 / EN 13190 |
| Application | CNG, Oil, Water, Steam, Air, Gas |
Key Features
- High Accuracy – Precision bimetal or gas-filled mechanism ensures reliable temperature reading.
- Bimetal Construction – No mercury or hazardous liquids, safe for food and pharmaceutical applications.
- Stainless Steel Stem – Corrosion-resistant SS 304/316 stem for long service life.
- Wide Temperature Range – Available from -50°C to +600°C to suit various applications.
- Multiple Mounting Options – Bottom entry, back entry, panel mount, and adjustable configurations available.
- Safety Glass Window – Acrylic, polycarbonate, or glass window for clear visibility and safety.
- Leak-Proof Connection – Precision threaded connections (BSP/NPT) for secure, leak-free installation.
- IS 2806 Compliant – Manufactured as per Indian standards for quality assurance.
- Custom Ranges Available – Dual scale (°C/°F) and custom temperature ranges on request.
How Does a Temperature Gauge Work?
A temperature gauge works on the principle of thermal expansion, where temperature changes cause a bimetal strip or gas to expand, moving a needle across a calibrated dial:
- Heat Transfer: The stem of the gauge absorbs heat from the medium being measured.
- Bimetal Expansion: Inside the stem, a bimetal strip (two metals bonded together) expands at different rates when heated.
- Coil Movement: This differential expansion causes the bimetal coil to rotate.
- Reading Display: The rotation is transferred to the pointer, which moves across the graduated dial to indicate the temperature.
In gas-filled gauges, temperature changes cause gas pressure to vary, which moves the pointer through a Bourdon tube mechanism. These are preferred for high-vibration environments.
Where Our Temperature Gauges Are Used
Frequently Asked Questions
What is the price of a temperature gauge in India?
Price depends on dial size, temperature range, accuracy class, stem length, and material. Contact Rutvi Enterprises for a customized quote based on your requirement.
What is the difference between bimetal and gas-filled temperature gauges?
Bimetal gauges use a bimetal strip that expands with heat, suitable for most industrial applications. Gas-filled gauges use gas pressure to move the pointer, making them ideal for high-vibration environments.
What temperature range is available?
Our temperature gauges are available from -50°C to +600°C. Custom ranges and dual scales (°C/°F) are also available on request.
Are your temperature gauges suitable for CNG applications?
Yes. We supply temperature gauges specifically designed for CNG stations and CNG dispensing systems, with ranges suitable for CNG temperature monitoring.
Do you provide bulk orders and after-sales support?
Yes. Rutvi Enterprises supplies temperature gauges in bulk for industrial projects and provides after-sales support, spare parts, and technical assistance across India.
Get a Quote for Your Temperature Gauge
Contact Rutvi Enterprises for customized temperature gauge solutions, pricing, and technical support.
